Can you use a gfci breaker and outlet together

Table of Contents

Do I need GFCI outlets if I have a GFCI breaker?

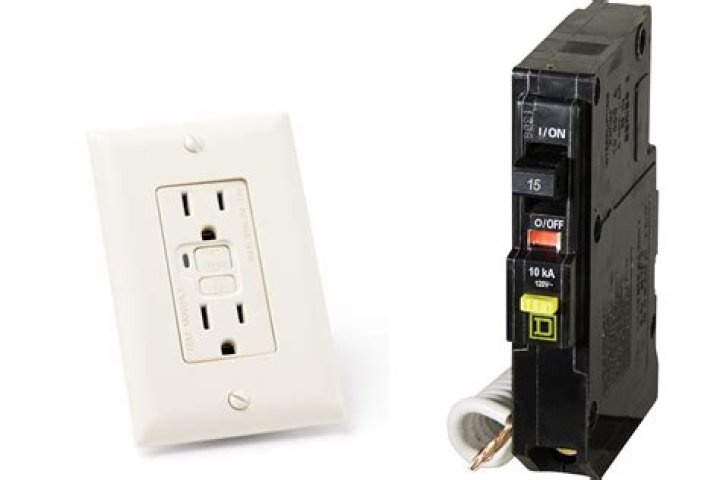

Many GFCI options are available today, but the two most common types are GFCI circuit breakers and GFCI receptacles. You do not need both on the same circuit. A GFCI circuit breaker protects the entire branch circuit and everything connected to it, be it receptacles, lights, appliances, etc.

Does a GFCI have to be the first outlet?

GFCI doesn’t have to be the first in line because placing the GFCI first in line will trip whenever something goes wrong with any of the outlets downstream. While placing the GFCI first in line will protect all the other outlets downstream.

Can I run another outlet from a GFCI outlet?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. … We’ll show you how to replace a standard duplex receptacle with a GFCI and wire it to protect other outlets.

How many outlets can be connected to GFCI?

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

Can you have 2 GFCI outlets on the same circuit?

Yes, you can have multiple GFCI outlets on the same circuit, but why. ? .. . A single GFCI outlet, can be used to provide GFCI protection for all the normal outlets after it, if wired correctly.. .

Does a refrigerator need a GFCI?

Residential Kitchen

In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

Can you daisy chain GFCI outlets?

With GFCI devices designed for residential installation, there is no need to daisy chain them, as they all are set to trip at around 6mA of leakage current. Daisy chaining GFCIs does not increase protection.

How many outlets can be on a 20 amp circuit?

10 outlets Although the National Electric Code (NEC) doesn’t directly rule on limiting outlet installments on your circuit, it is crucial to learn its power draw restrictions. In general, you should have a maximum of 10 outlets on a 20A circuit.

Does a GFCI outlet protect the whole circuit?

What Is a GFCI Circuit Breaker? GFCI circuit breakers protect the entire circuit. GFCI circuit breakers are simple: By installing one in the service panel (breaker box), it adds GFCI protection to an entire circuit, including the wiring and all devices and appliances connected to the circuit.

What is the difference between a GFI and a GFCI?

There is actually no difference at all.

A common conversation when discussing receptacles may be referring to a ground fault circuit interrupter (GFCI) as simply a ground fault interrupter (GFI). They are generally the exact same thing.

How do you wire two GFCI outlets?

How do I run multiple GFCI outlets?

You can wire a single GFCI with multiple outlets using the 2 wires cables, multiple outlets, and GFCI. You’ll have to use that single GFCI as the source and then connecting the rest of the outlets using the same load and line terminals.

Can a GFCI outlet be connected to a GFCI breaker?

2 Answers. Yes, it can be done. There is no problem having a GFI fed from another GFI. The only down side is troubleshooting.

Can I plug my refrigerator into a GFCI outlet?

A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens. … The problem with refrigerators is that they can cause unneeded trips in GFCI outlets.

Should I get a 15 or 20 amp GFCI outlet?

Look at the GFCI you are replacing. … Kitchens and bathrooms should always have 20 amp gfci outlets. However, you must be using number 12 wire for 20 amp gfci or regular outlets If your wiring is number 14 guage then use a 15 amp. So, the wire size and breaker size together should be rated for 20 amps!

Does GFCI mean ground fault circuit interference?

GFCI stands for ground fault circuit interrupter. Also known as GFI. There are small transformers within these devices that detect variances in the electrical current that are characteristic of water interference. These devices will automatically shut off power to the protected part of the circuit.

What is the difference between arc fault and GFCI?

The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. Arcing faults often occur in damaged or deteriorated wires and cords. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

Can 15 amp outlets be used on 20 amp circuit?

15 Amp Circuits

The wire has a rating that allows it to carry up to 20 amps. In most home installations, several 15-amp receptacles connect to a 20-amp circuit breaker. This allows multiple devices to connect to a single 20-amp circuit as long as the total circuit load does not exceed 20 amps.

What happens when you put a 20 amp receptacle on a 15 amp circuit?

Again, nothing will happen. On their own, outlets do not draw power. … In other words, you can safely use a 20 Amp outlet on a 15 Amp circuit if the appliances attached do not exceed the rating of the 15 amp circuit. If you force the circuit to draw more power than it can handle, the breaker will trip.

What happens 20 amp GFCI on 15 amp circuit?

Can I Use 20-Amp GFCI On 15 Amp Circuit? You can’t use 20A GFCI on a 15A circuit because a 20A GFCI will draw more power than the 15A circuit can handle. This will cause the breaker to trip. If the breaker malfunctions, you could start a fire, especially if you are using that 20A GFCI to operate a 20A appliance.

Can a microwave be on a 15 amp circuit?

What’s the Danger? A microwave plugged into a 15-amp circuit could cause the wires in the wall to overheat and present a fire hazard. More likely, however, the microwave will trip the 15-amp breaker and pose a regular nuissance. Note that you should never just replace a 15-amp breaker with a 20-amp breaker.
